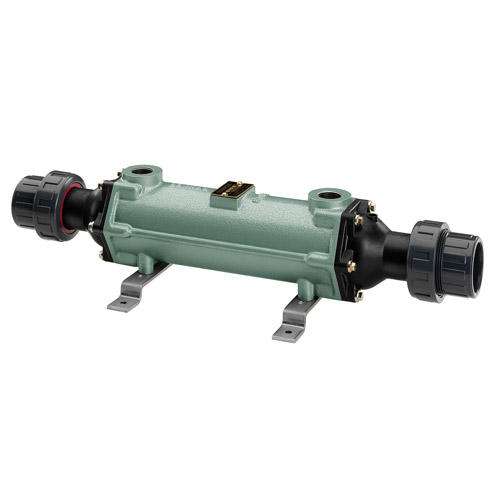

Heat exchanger Bowman for solar panels/heat pump 47 kW copper/nickel

SOLAR PANELS/HEAT PUMP - PRIMARY CIRCUIT 45°C.

Pool capacity boiler: 94 m³.

Boiler flow rate: 4.5 m³.

Heat transfer: 47kW 160,00 BTU/h.

Pool flow: 23 m³/h.

Finish: copper/nickel.

There are two series of Bowman heat exchangers for swimming pools, one fo use with a boiler and another for use with solar panels or a heat pump.

The Bowman heat exchanger, which is available worldwide, stands for reliability and durability, and offers the following advantages:

Energy saving:

With more heat exchange tubes than most models from other manufacturers, the heat exchanger is much more efficient, allowing the water to be heated up to 3x faster.

This in turn reduces energy costs and CO2 emissions.

Corrosion-resistant material:

The heat exchanger is available in titanium or copper nickel versions, allowing it to be used for any type of bath.

Excellent reliability:

Manufactured in England to BS EN ISO 9001-2008 standards, there are several ten thousand units operational, worldwide.

New hot tub model:

The new super compact model 5113-1 delivers up to 25kW of heat exchange!

Ideal for hot tubs, spas and small pool up to 50m³.

Option: see "LEA thermostat for Bowman heat exchanger:

LAE thermostat wall-mountable digital thermostat, range -50 to 150°C programmable, 230 VAC, input 5 Amp, 240 VAC output.
